GVA POWER SUPPLY SYSTEM IPSS

Our IPSS inductive power supply system implements the isolated supply of modules with different electrical potentials, e.g. for control modules in high-voltage applications or for series connection of power semiconductors. It is available as a standalone component or also supplemented by decoupling units or thyristor ignition modules.

Highlights:

  •    Modular, flexible design
  •    One basic unit replaces many individual power packs
  •    Decoupling as individual or integrated solution on the driver board
  •    Large input voltage range (24VDC to 110VDC)
  •    System voltage up to 12kVeff between primary and secondary side as well as between individual consumers
  •    Selectable output voltage; standard 12VDC, 15VDC and 24VDC; other output voltages on request.



  • pdf-icon
    GvA Prospekt 2019 d
    download-icon
  • pdf-icon

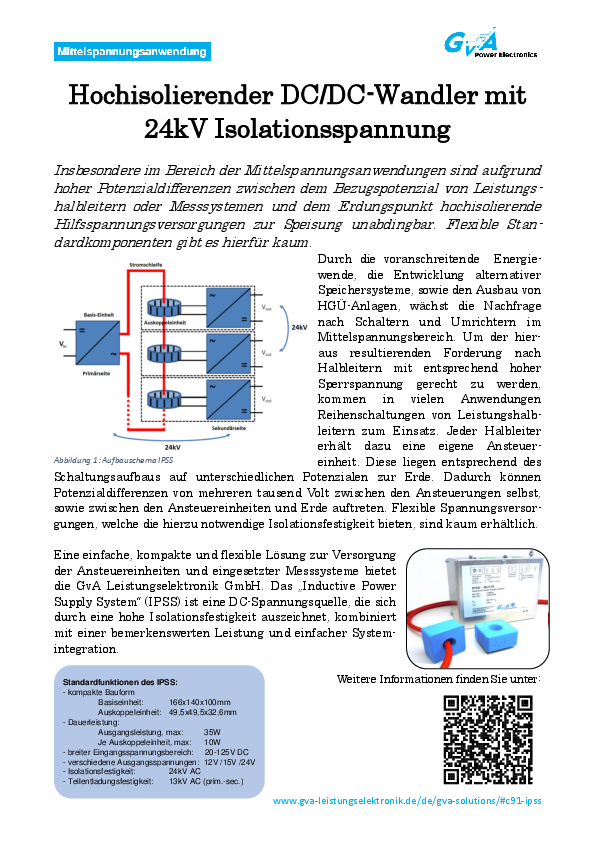

    IPSS Flyer d
    download-icon
  • pdf-icon

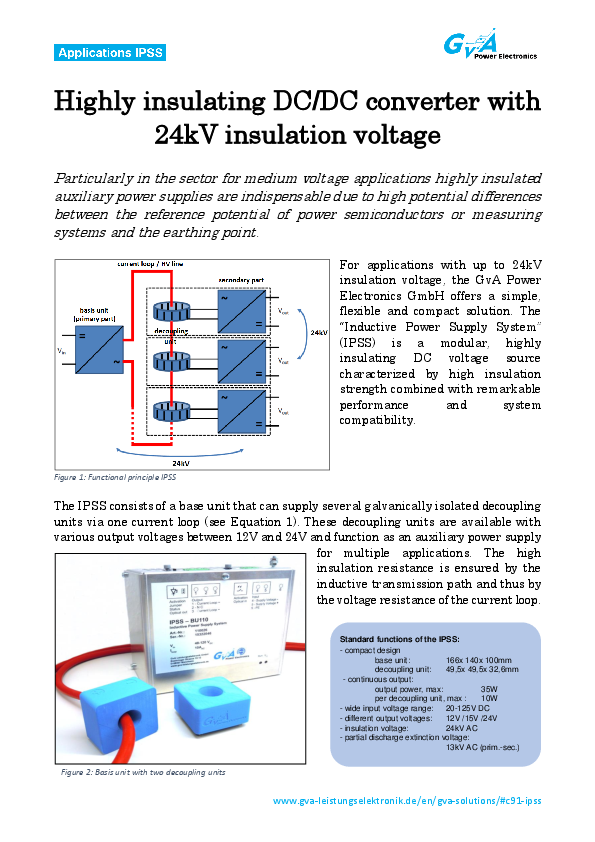

    Applikationen IPSS
    download-icon
  • pdf-icon
    DS P15067 24
    download-icon
